Description

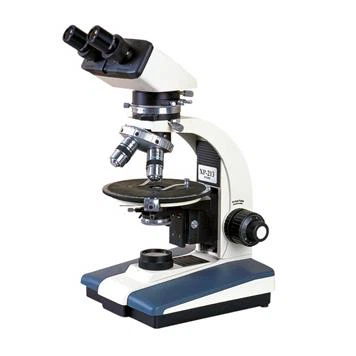

· Polarizing microscope for normal inspection and education.
· Widely used in crystalIography，AnalyticaI chemistry，Medicine，Biology，Envi ronmentaIoIogy，Pharmacy，Toxicologyand so on．
· Supply sharp and clear images by single polarization，othorgonal polarization or conoscopic observation.
Specification
| XP-213 | ||
| Viewing Head | Sliding binocular viewing head, Inclined at 30° | ● |
| Sliding trinocular viewing head, Inclined at 30° | ○ | |
| Eyepiece | Eyepiece WF10×/18 with scale of cross hair | ● |
| Eyepiece WF10×/18 with graticule | ● | |
| Eyepiece WF 10×/18 | ● | |
| Objective | Strain free achromatic objective 4×、10×、25×、40×、63× | ● |
| Lamp house adjustment objective | ○ | |
| Nosepiece | Backward quadruple nosepiece, Center adjustable | ● |
| Analyzer | Rotatable analyzer with gradation 0°-90° | ● |
| Bertrand Lens | Bertrand lens, Sliding in/out of optical path | ● |
| Optical Compensator | λ Slip（First class red）, 1/ 4λ Slip, Quartz wedge | ● |
| Revolving Round Stage | Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6′ when using vernier scale | ● |
| Condenser | NA1.25 Abbe condenser with iris diaphragm & filter | ● |
| Focusing | Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm | ● |
| Polarizer | 360° Rotatable | ● |
| Illumination | 12V/ 20W Halogen lamp, Brightness adjustable（Transmitted illumination） | ● |
| Accessories | Mechanical stage, Moving range 30×40mm | ○ |
| Specimen presser | ○ | |
| Micrometer | ● | |
| Blue filter | ● |
Note：● Standard Outfit，○ Optional
