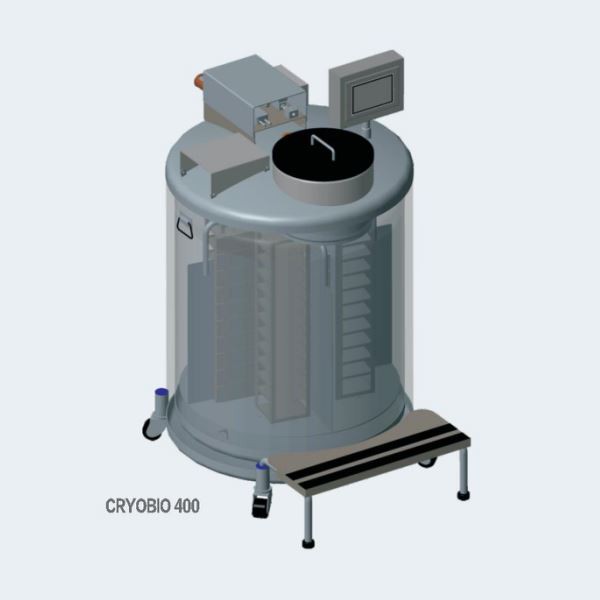

Description

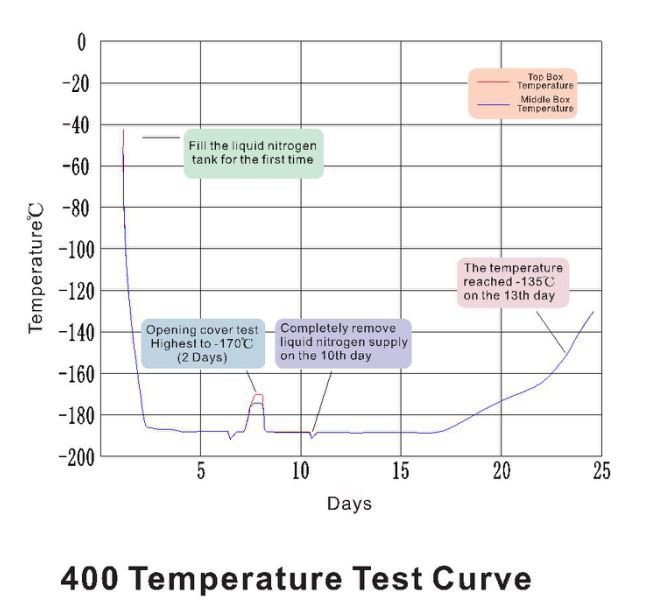

The Cryobio 400 Series is a small-scale, high-density storage that provides users full-automatic, safe and reliable. ultra-low temperature liquid nitrogen storage system can store 15600~19500 2ml cryo tubes, when specimen in vapor storage, the entire storage area temperature differences do not exceed 10℃, and the top of frozen rack lowest temperature can reach -190℃.
Specification

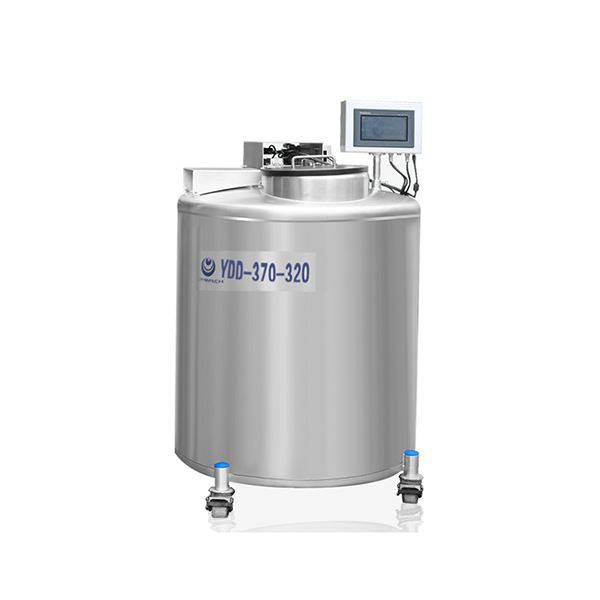

Model | YDD-370-320P/GP | YDD-420-320P/GP | YDD-460-320P/GP | |
Maximum Storage Capacity | 1.2, 2ml Cryo-tube | 15600 | 18200 | 19500 |
| Number of Racks(10*10) | 12 | 12 | 12 | |
Number of Racks(5*5) | 4 | 4 | 4 | |
Layers of racks | 12 | 14 | 15 | |
Performance | Liquid Nitrogen Volume L | 370 | 420 | 460 |
Liquid Nitrogen Volume under the Tray L | 52 | 55 | 55 | |
Static Hold Time D(Gas Phase) | 10 | 11 | 11 | |
Static Hold Time D(Liquid Phase) | 74 | 84 | 92 | |
Parameters of Tank | Neck Diameter(mm) | 320 | 320 | 320 |
Effective Height(mm) | 675 | 780 | 875 | |
Inner Diameter(mm) | 730 | 730 | 730 | |
Total Height(mm) | 1245 | 1353 | 1450 | |
Door-width requirement | 815 | 815 | 815 | |
Empty Weight(kg) | 235 | 225 | 258 | |
Full Weight(kg) | 536 | 530 | 632 | |

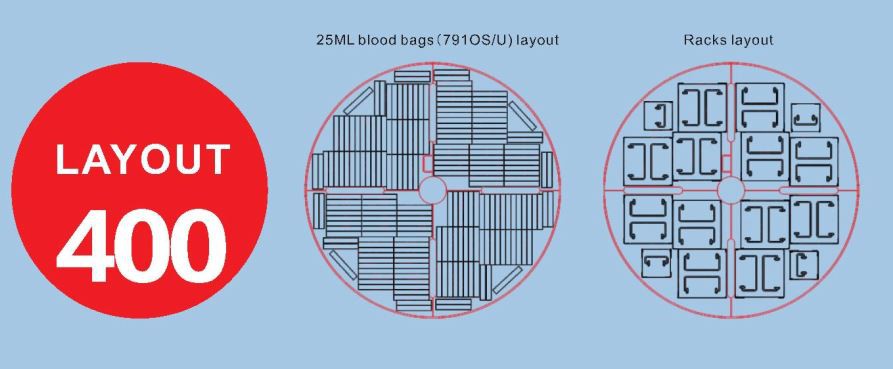

Blood Bags Capacity | 25ml | 2322/7/258 | 2064/8/258 | 2322/9/258 |
50ml | 768/6/128 | 898/7/128 | 1024/8/128 | |
250ml | 416/4/104 | 416/4/104 | 520/5/104 | |
Features
» Automatic rehydration system and hot gas discharge system.
» Standard vacuum inlet hose.
» Gas phase storage, top up to -190 ℃
» Optional removable single or double step.
» Optional Battery backup
» Five-year vacuum warranty
Product Display
